Eyeball Downlight 10W-30W

| Model: HM-DL-G08
Key Feature

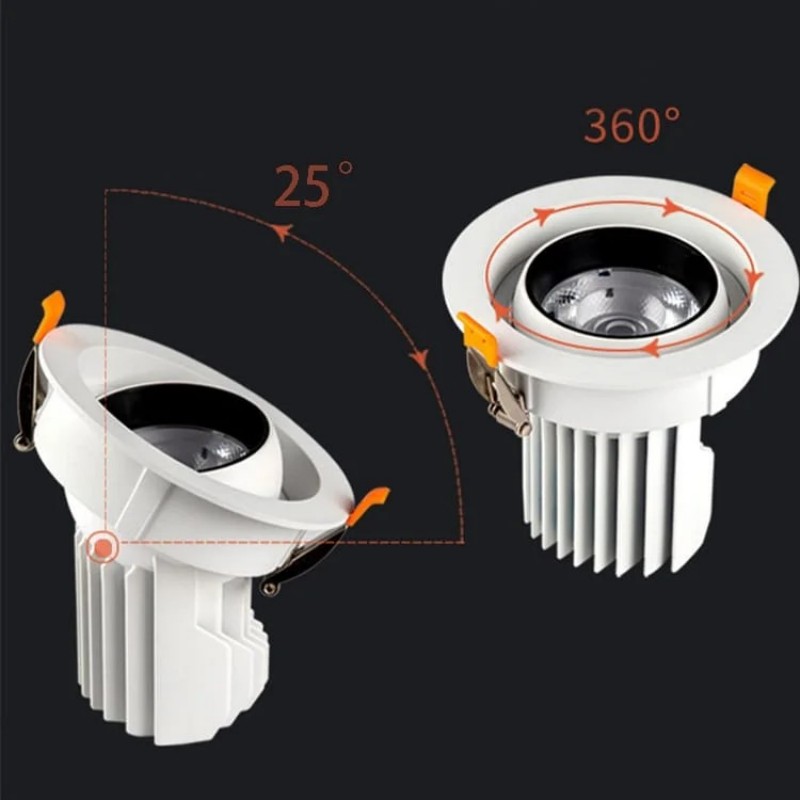

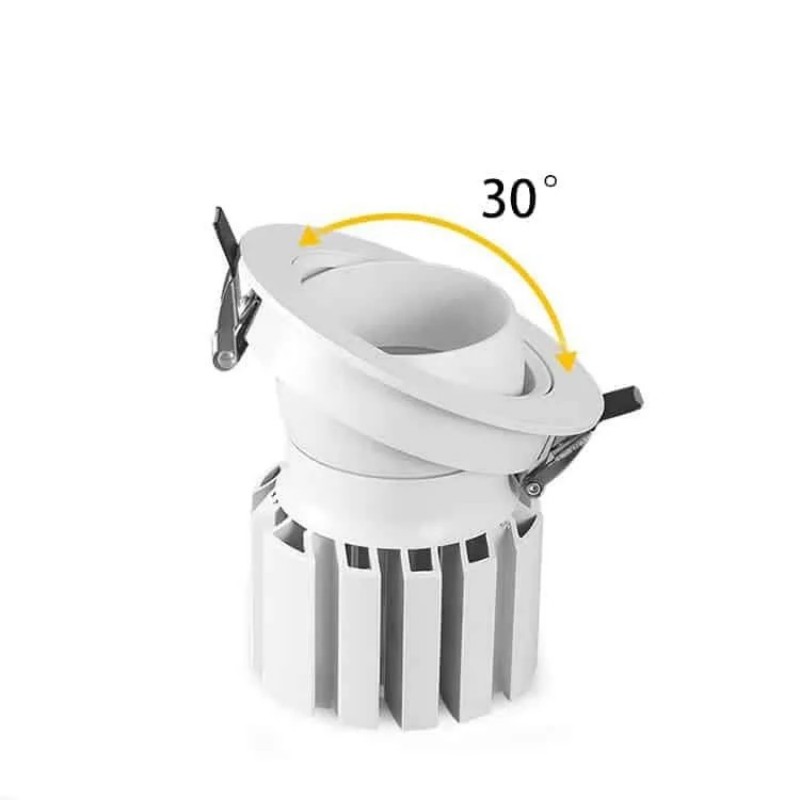

This eyeball downlight is designed with an adjustable lighting direction structure, 350° rotation horizontally (gimbal), and 25-30° adjustment up and down. it is good recessed lighting for commercial areas like shops.

Power:10W 15W 20W 30W 40W
Size:Φ90*98mm/Ø109*107mm/Ø109*107mm/Ø134*130mm/Φ90*97mm/Φ110*115mm/Φ125*125mm
Color: Matt white/ Matt black
Installation: recessed mounted
Wattage: 10W 15W 20W 25W 30W 35W
Beam angle: 24°/15°/36°
Rotation: 350° rotation
Control way: ON/OFF as standard, Dimmable optional
Free flicker: Yes
Working life: >50000Hrs
Manufacturer warranty: 3/5 years
Products Details

Body & Finished

  • Housing: Die-cast aluminum body
  • Lens/Diffuser: Polycarbonate lens. 15/24/36/50° design
  • Clips: steel
  • Trim: Aluminum

Control Gear & Led driver

  • Led driver brand: LiFud/ Eagleries as standard, Osram, Philips driver can be optional
  • Working voltage:100/220-265VAC 50/60Hz or 220-240VAC 50/60Hz.
  • Power Factor:>0.5 as standard, 0.9 as an option
  • Efficiency:>88%
  • IP Rating: IP20
  • Surge protection: 1-2KV
  • Working temperature:-25℃/+50℃
  • Compliance: CE RoHS CB CCC ENEC TUV SAA
  • Warranty:3/5Years.

Optical

  • Led chips: Bridgelux as a standard, Osram/Philips COB options
  • CRI:>92
  • Color temp: 3000K-3500K, 4000-4500K, 5000-5700K, 6000-6500K
  • Lumens: 110-140LM/W
