Recessed Downlighter 4inch-10inch

| Model: HM-DL-06
Key Feature

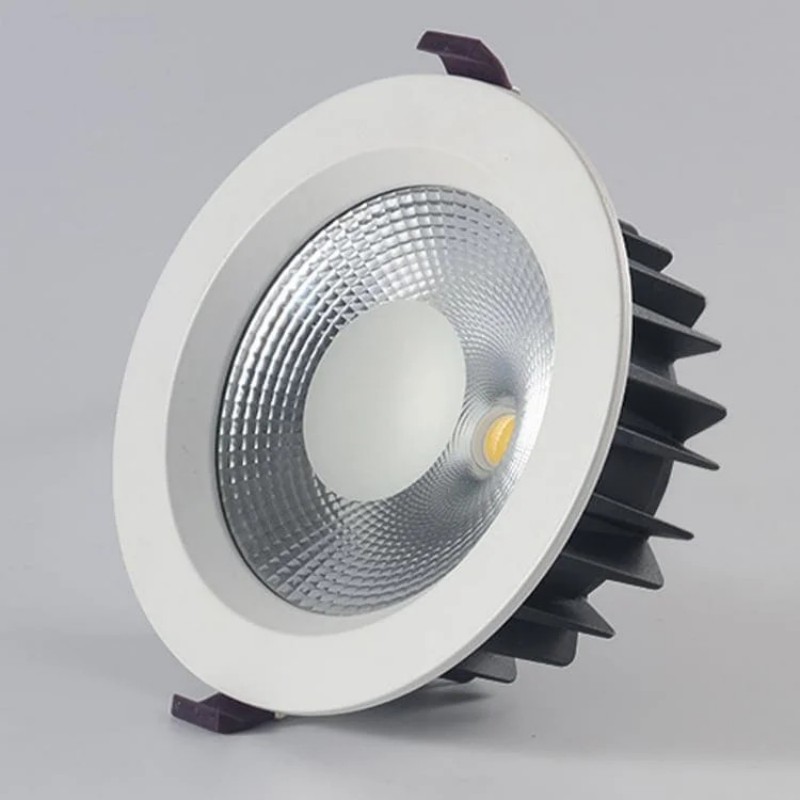

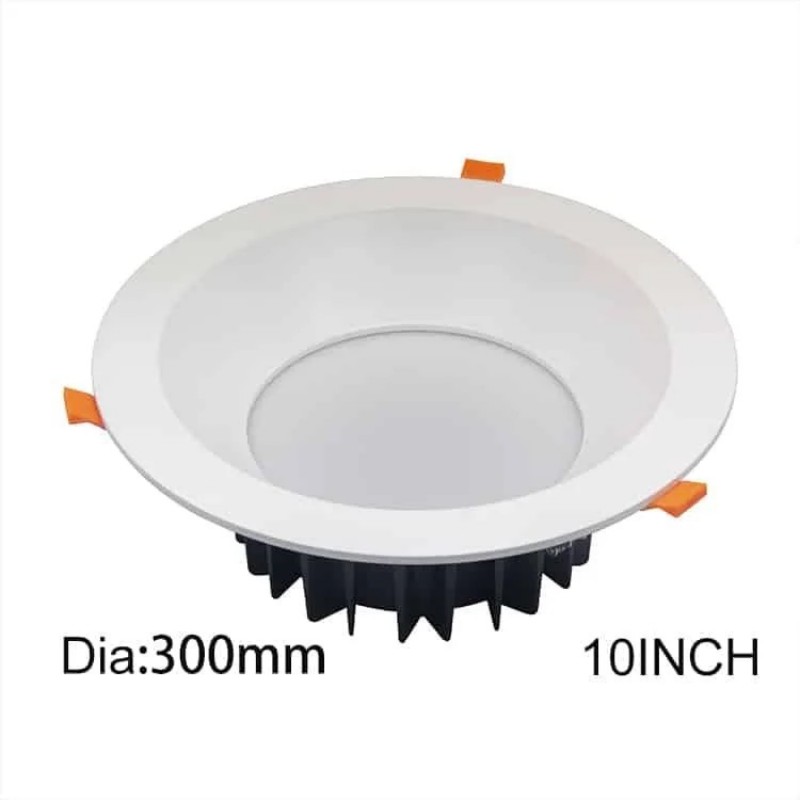

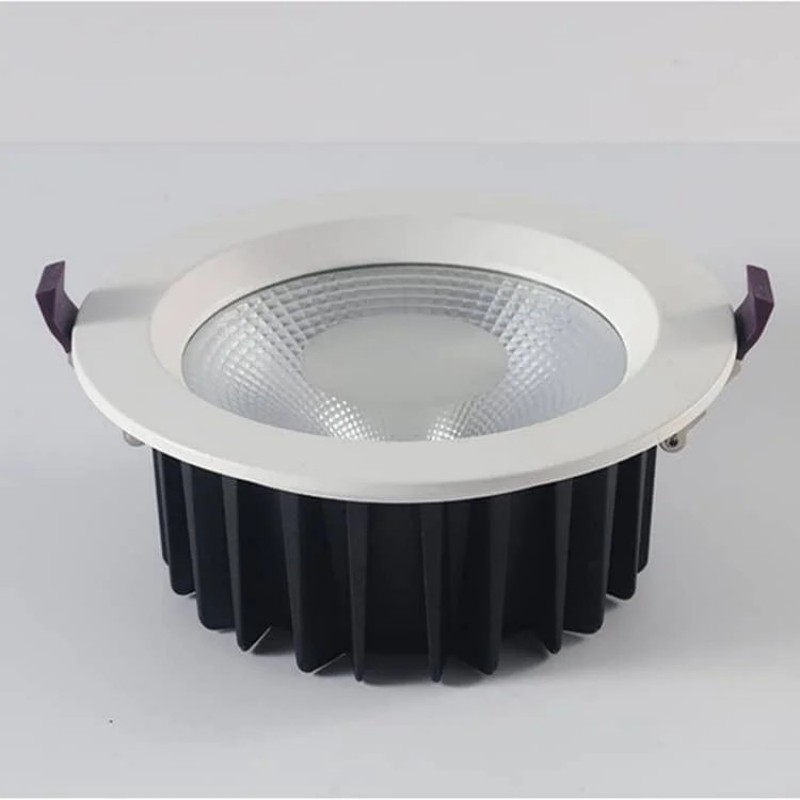

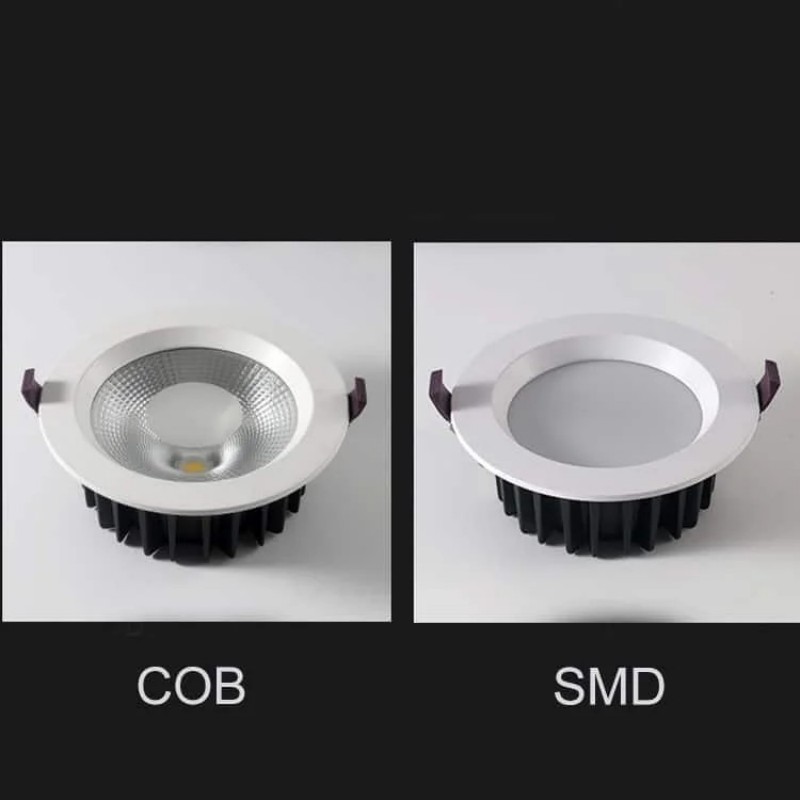

HM-DL-06 Series is one of the recessed commercial downlights, available COB / SMD light source in led chips type, with a top-quality die-cast aluminum body, including 4inch, 5inch, 6inch, 8inch, 9inch （Diameter:250mm, cutout: 220-240mm）, and 10inch ( diameter:300mm, cut out: 240mm-280mm) in dimension. It can widely meet the different installation heights of various commercial places.

Power:15W 20W 30W 40W
Size: 4 inch; 5inch; 6inch; 8inch; 9inch; 10inch
Installation Mount: Recessed
Luminaires type: Commercial & Industrial
Wattage: 15W 20W 30W 40W 50W
Beam angle: 120°
Control way: ON/OFF
Free flicker: Yes
Working life:50000Hrs
IP Rate: IP20 indoor use
Products Details

Material & Finished

  • Outer trim: Aluminum, white finished

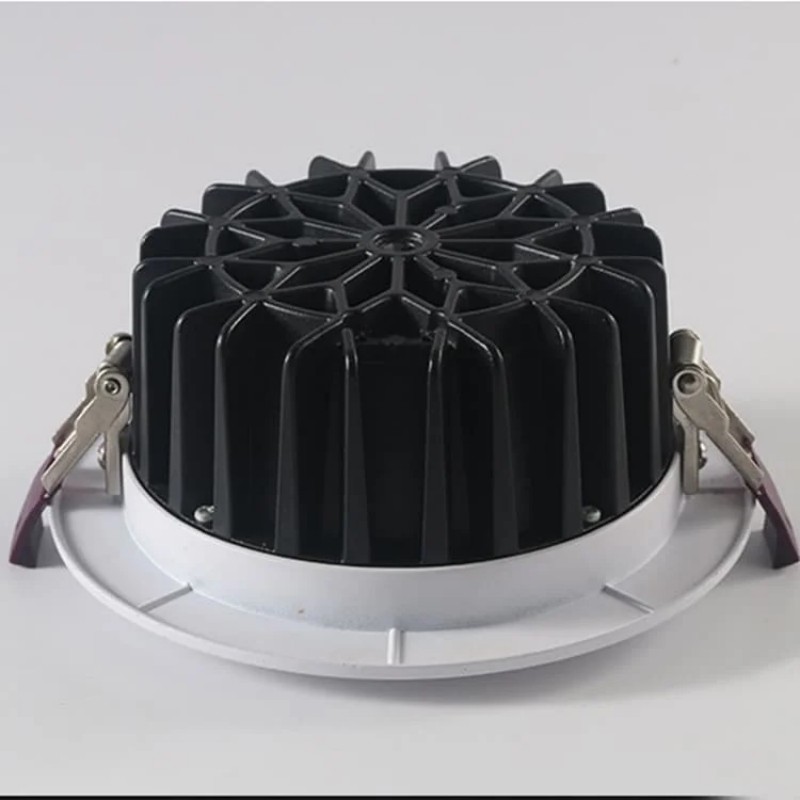

  • Heat sink: Die-cast aluminum, black finished
  • Reflector: Only for COB type, silver finished, plastic.
  • Cover: Glass cover for COB type, PMMA Cover for SMD type.
  • Spring clips: Steel.
  • Cable: rubber cable.

Control gear / Optical

  • Control gear brand: LiFud/Eagleries as standard. Philips/Osram optional
  • Working voltage:110/220-240VAC 50/60Hz
  • Power Factor:>0.5 as standard or >0.9 optional
  • THD:<10%
  • Color rendering index:>90
  • Lumens:90lm-110lm/W output.
  • SDCM:<3
  • Efficiency:>85%
  • IP Rating: IP20 Indoor use
  • Beam angle: 60° Medium distribution for COB; 120° for SMD.
  • Lifetime:>50000Hrs
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:3/5 Years.
